Rotary table bearing YRT850 precision: P4(runout≤12μm); P2(runout≤6um)
Rotary table bearing YRT850 structure:Inner ring, Outer ring, the second inner ring, rolling elements, cages.

Rotary table bearing YRT850 are preloaded before leaving the factory, it is necessary for customer to tell us the requirement torque, then we will adjust it to the right torque before leaving factory.(HONBbearing05)

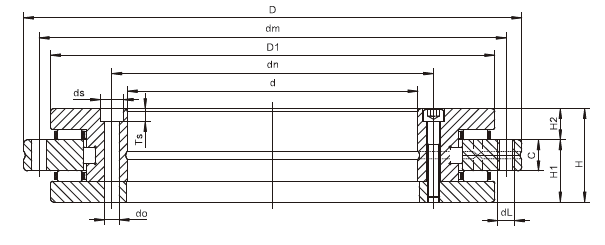

YRT basic rotary table Bearings are designed with a radial full roller, two groups of axial needle Roller, cage assembly, an out ring, a  L-section Inner ring and the second ring. the out ring and inner ring have fixing holes. Added preload after fitting simplified the unit construction,Shorten the work of fixing, Lowered the high on fixing. so this kind of bearing is particularly suitable for the situatin of High precision, high  stiffness and the Union loads with low speed such as index tables and revolving milling heads*this kind of Bearing have axial and radial running precision for your chosen.(HONBbearing05)
